Explosion proof camera  Cheap

  • Explosion proof camera  Cheap
  • Explosion proof camera  Cheap
  • Explosion proof camera  Cheap
  • Explosion proof camera  Cheap

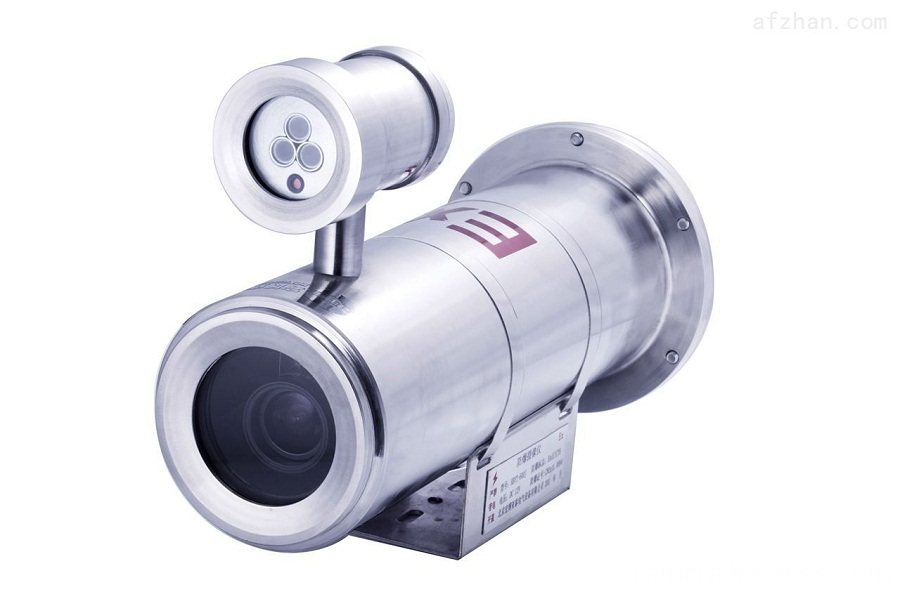

Explosion proof camera Cheap

    Min. Order: 1 Bag/Bags
    Transportation: Ocean,Land,Air

Product Description

Material:304 316Stainless Steel

Explosion-proof performance in line with GB3836.1-2000 "Electrical apparatus for explosive gas atmospheres
It is suitable for dangerous explosion gas environment.Such as oil field,chemical plant,steamship,gas station,curative,gas storeroom and so on.
Explosion-proof camera housing can highly integrated with others pan/tilt,decoder,camera and IR lamp, easy installation,automatic cruise and preset features,support line scan,area scan,preset cruise. Invisible nano-wiper,non-stick water,non-stick oil,exclusion of dust.High-hardness special carbon steel treated with fluorine-carbon spray,explosion-proof,dust-proof,water-proof.Optional stainless steel for corrosive environments.

Functions and Features:
1.Use unique special explosion proof glass, high light flux rate,avoid infrared light spot
2.Nanometer invisible features, rain wiper functions(option),non-stick water,non-stick oil,Exclusion of dust
3.High hardness and high quality carbon steel material, surface coated processing technology
4.Optional to add some functions according to customer requirements: e.g:
internet module,Optical transceiver module,wireless transceiver module, heating device

Work Environments :
Chemical industry,oil,steel,iron,Military project,medicine,mine,oil warehouse,ship,oil drilling platform,gas station,Production of fireworks and firecrackers,food Processing and storage

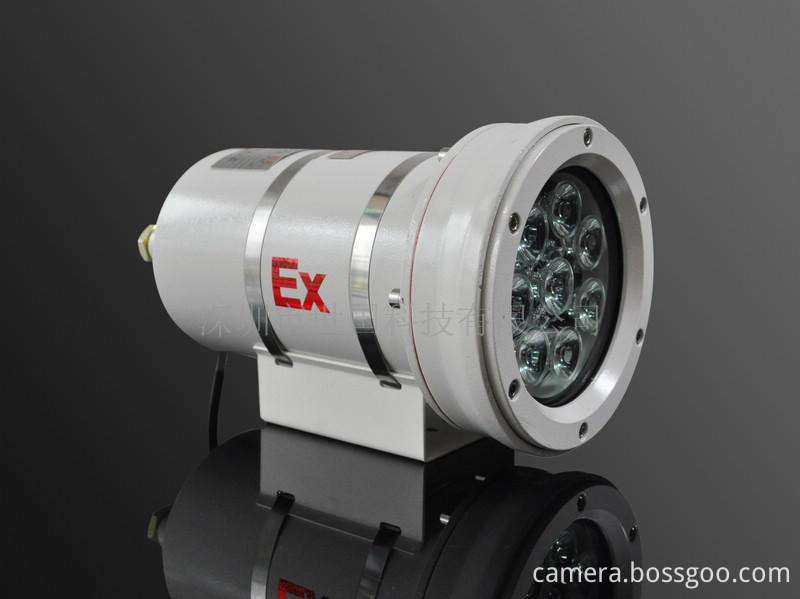

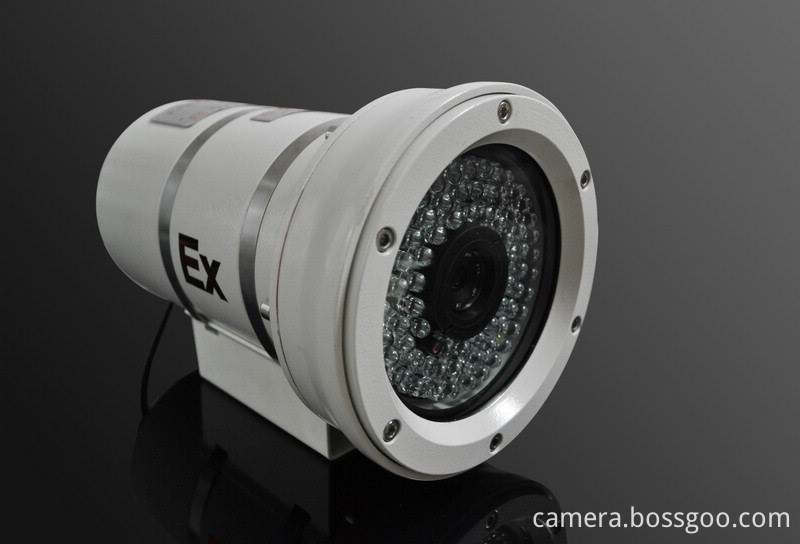

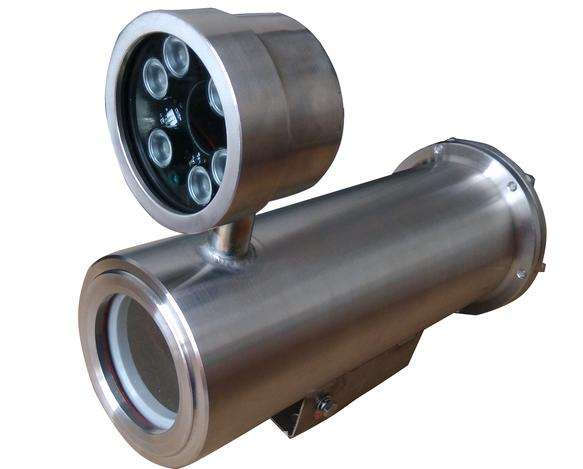

Explosion Proof CameraExplosion Proof CameraExplosion Proof CameraExplosion Proof Camera
Explosion Proof Camera Sprcifications:

Model number S-EXP609
Explosion proof mark ExdⅡCT6 / DIP A20 TA,T5
Camera/lens specification
Image senor 1/3" Sony superHAD CCD/SONY CMOS(IP&AHD)
Minimum illumination 0.01lux
Resolution 700TVL/1200TVL/1080P(Analog/ip/AHD senor option)
Lens 6 mm / 8 mm / 16 mm optional
SNR >48dB
Electrical Specifications
Voltage 100V~240VAC/DC12V.1.2A(poe for ip camera)
Working current ≤0.5A
Power ≤35W
IR distance 50m, 80m, 100m
Electrical connection 2 core cable for the power input, Coaxial cable is used for video signal output
Mechanical Specifications
Material S304
IP grade IP68
Environment temperature -30°C~+65°C
Window thickness 10mm
Weight 7kg
Cable hole 2
Cable hole thread specification G-3/4"
Installation Pan tilt, bracket
Size (L)365×(W)108×(H)140
